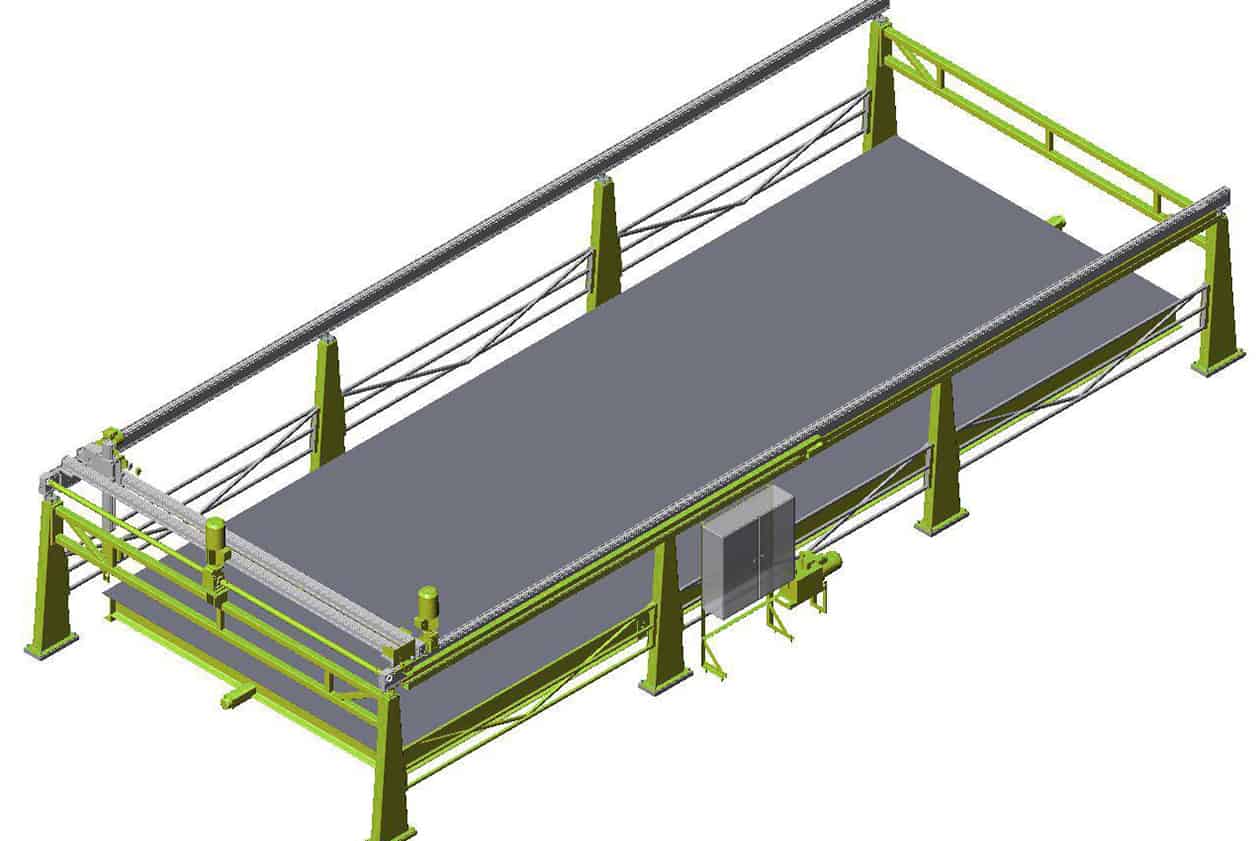

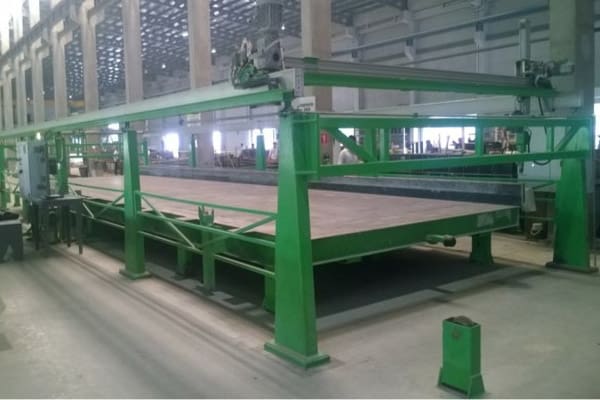

The Elematic Plotter E9 is designed to mark the location of side forms, window and door openings and other inserts on the table surface in a precast wall production line.

The Plotter E9 transfers the product geometry and mold position directly from the Elematic Plant Control WallMES manufacturing execution system to the mold surface according to the production plan.

Plotter E9

Length , approx. Mold length + 1100 mm
Width, approx. Mold width + 1300 mm
Height 2750 mm
Drawing speed 10 m/min
Drawing accuracy ± 1.0 mm

By directly transferring the design to production, the time required to prepare the form work is significantly reduced and measuring errors are also minimized.

The marking area of the Plotter E9 is adjusted as per the table size

OPERATION

Elematic Plant Control WallMES is required for operation.

BUILT-IN SAFETY

The Plotter E9 meets all EC Machine Directive requirements and comes with thorough and clear operator, maintenance and safety manuals in the required language.
