Lift shaft mold

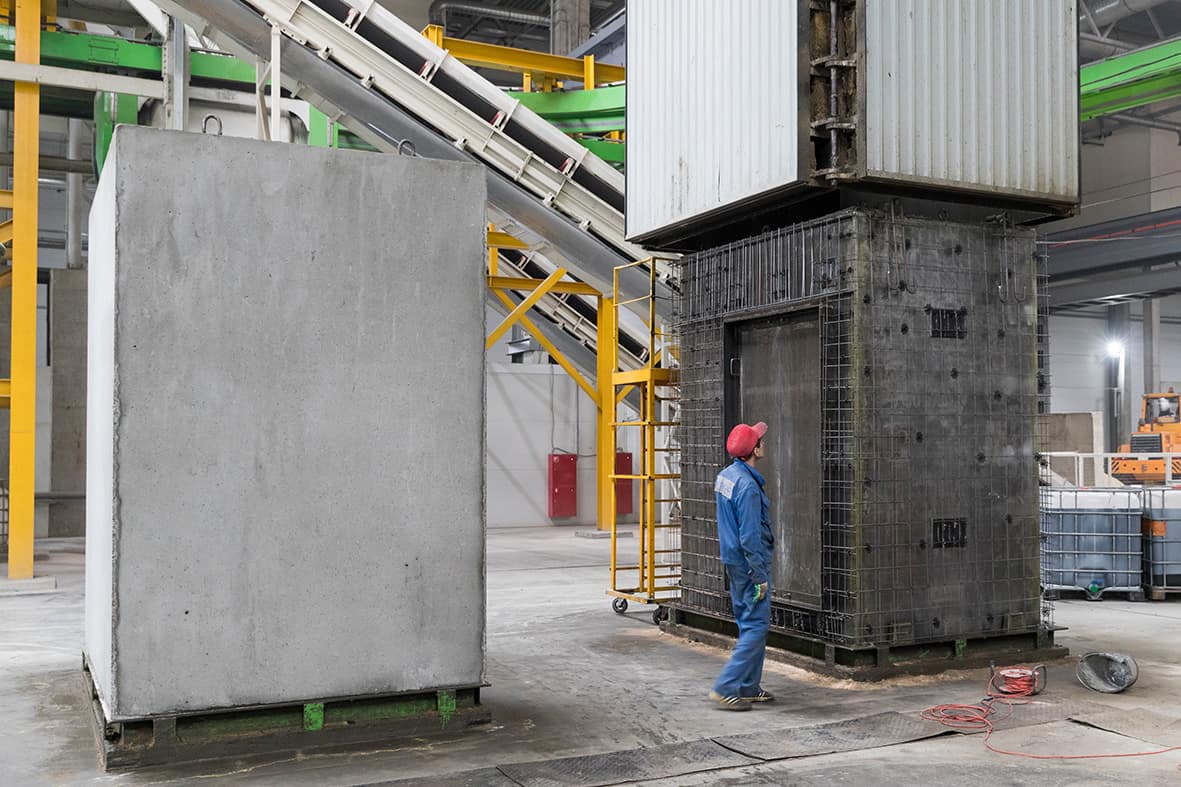

The Elematic lift shaft mold is designed for casting passenger and freight lift shafts.

Lift shaft mold

Thickness of surface plates 12 mm
Weight of inner mold, approx. 4500-4950 kg
Weight of outer mold, approx. 6200-6860 kg
Insulation thickness of outer mold 50 mm

The lift shaft mold is a customizable product, and thus, the dimensions are adapted to the customer’s needs. An example of a typical size for a passenger lift shaft is 1,1 x 1,5 x 2,98 m and for a freight lift the size is 1,75 x 2,4 x 2,98 m.

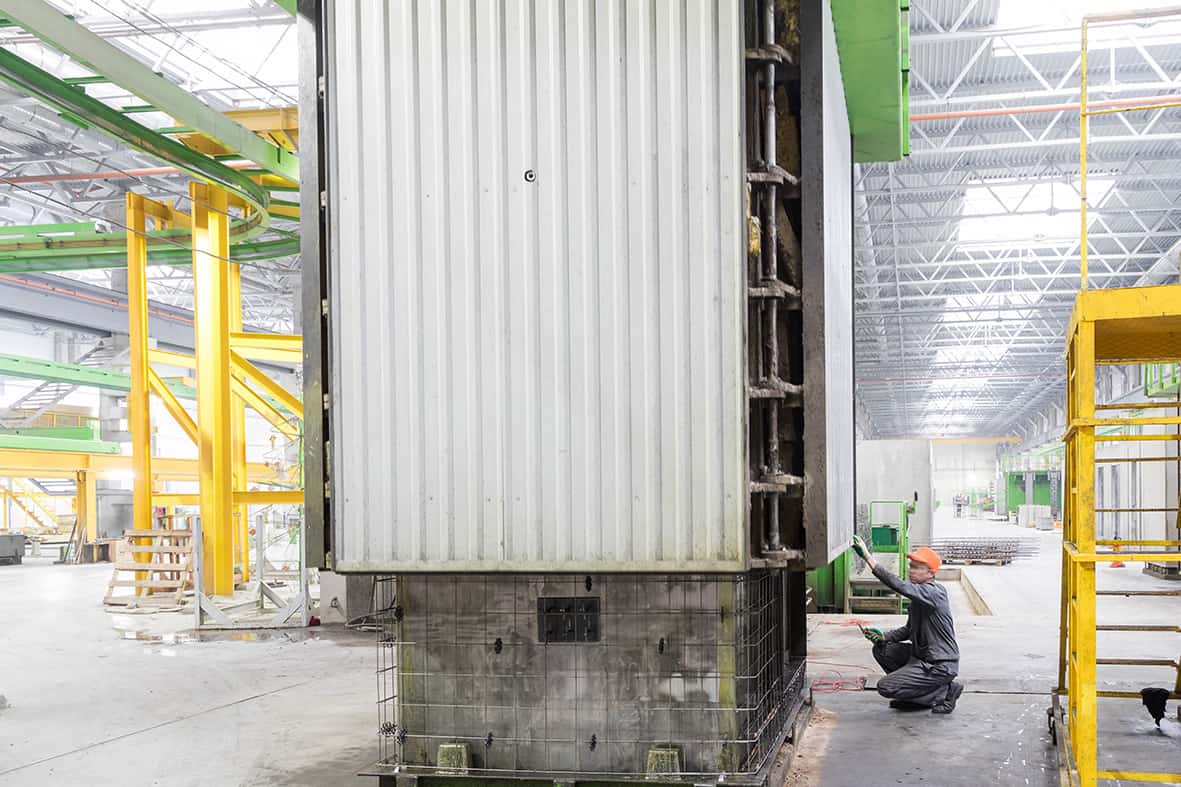

The lift shaft mold includes both the inner and the outer mold, which are made of steel. The outer mold consists of mold blocks. Axels are needed for moving and attaching the mold blocks. The axels, together with the conical shape of the mold, are the basis of the mold dismantling technology.

The lift shaft mold has a casting platform.


The lift shaft mold meets EC Machine Directive requirements and comes with thorough and clear operator, maintenance and safety manuals in the required language.
