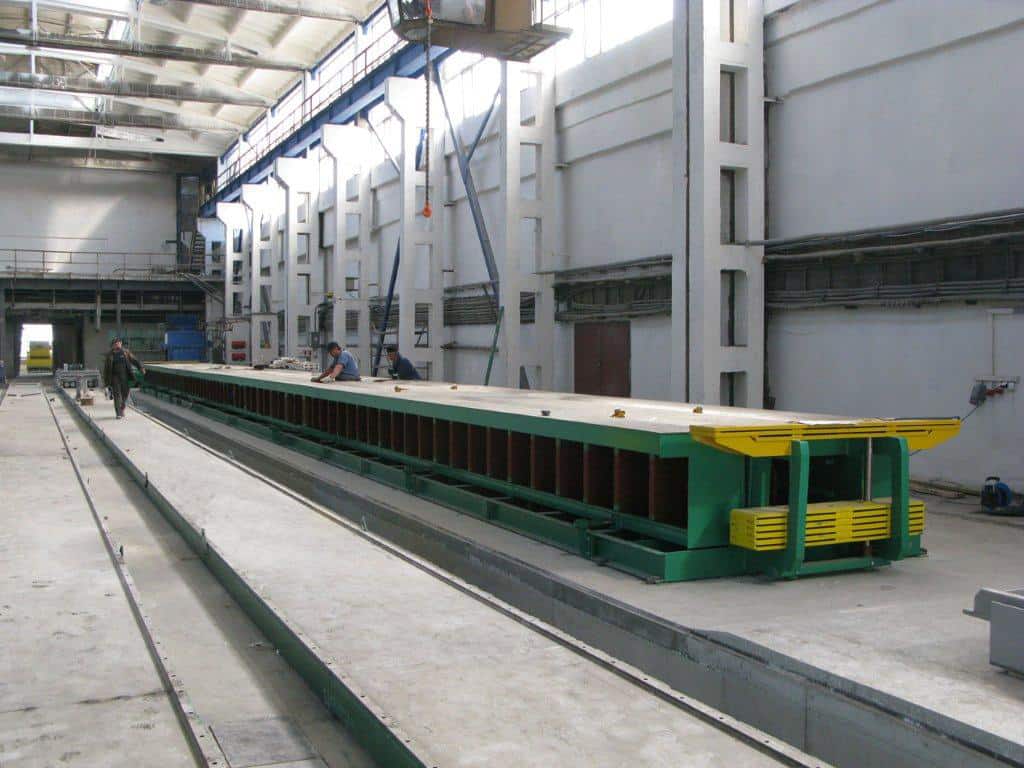

TT-slab mold
Elematic TT‐slab mold is designed for casting prestressed floor slabs.
TT-slab mold
| Mold dimensions are specified in the quotation |
|---|
Slab dimensions
| Width | 3000 mm |
|---|---|
| Height | Max. 1005 mm |
| Flange thickness | 50 mm |
| Web thickness | 100-200 mm |
| Prestressing force/web | Max. 2000 kN |
COMPOSITION
The TT-slab mold consists of a middle section, adjustable side sections and prestressing anchors, located in the ends of the mold.
The frame constructions of the TT-slab mold takes the forces of prestressing.
The mold is equipped with heating pipes.
BUILT-IN SAFETY
The TT-slab mold meets EC Machine Directive requirements and comes with thorough and clear operator, maintenance and safety manuals in the required language.
OPTIONS
Maturity Controller
Maturity Control pump
