Table E9

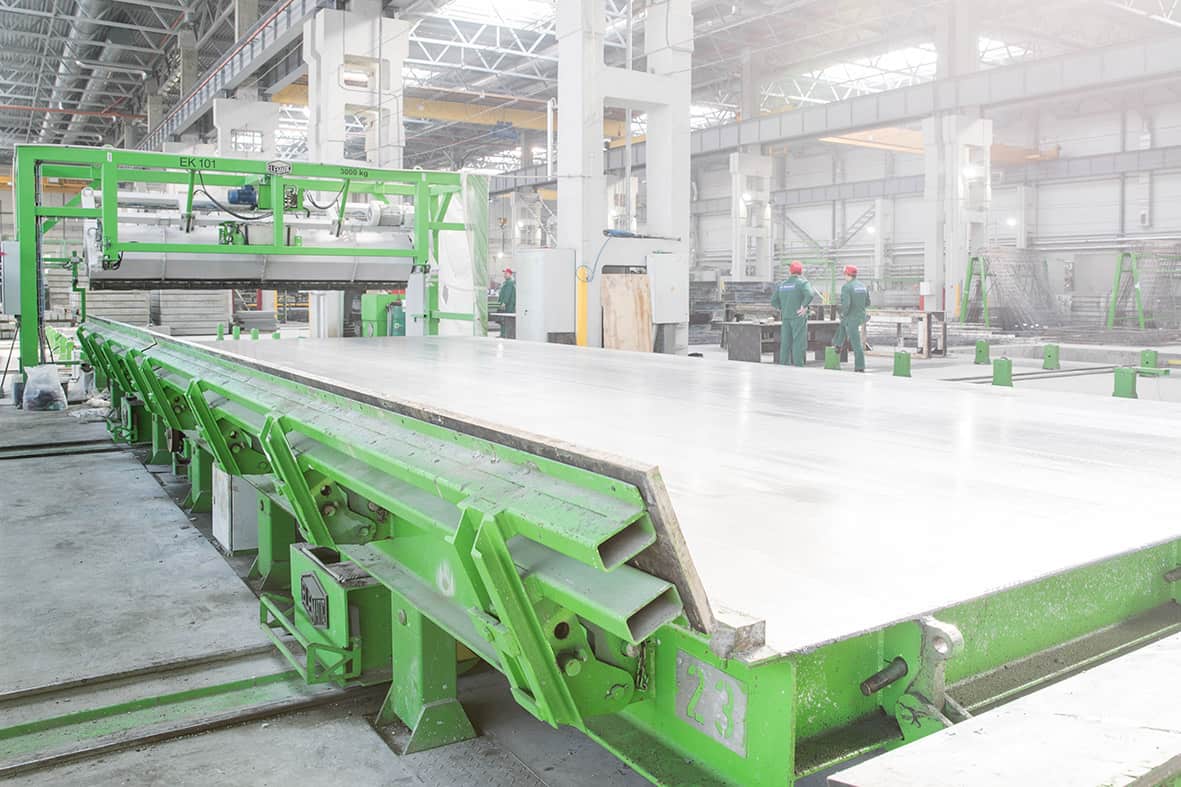

The Elematic table E9 is designed to operate as part of a circulation line during precast concrete production. It is intended for the manufacture of sandwich panels, solid panels, cladding panels and solid slabs.
Table E9-600
| Standard measurements | |
|---|---|
| Max. length | 12.0 m |
| Max, width | 4.0 m |
| Height | 308 mm |
| Load carrying capacity | 6 kN/m2 |
| The product can be customized |

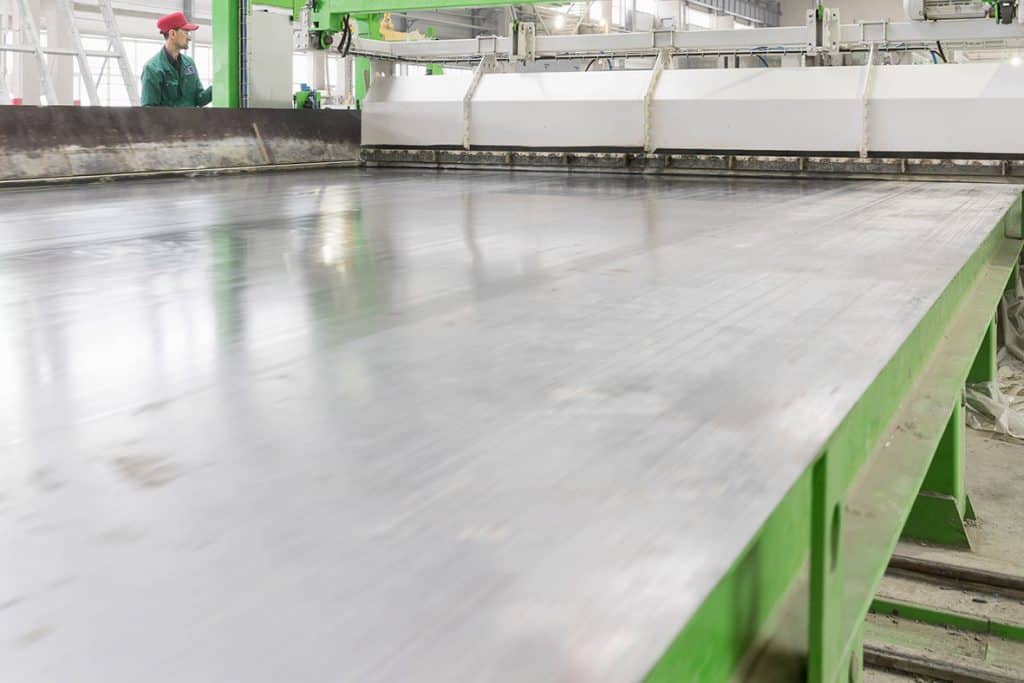

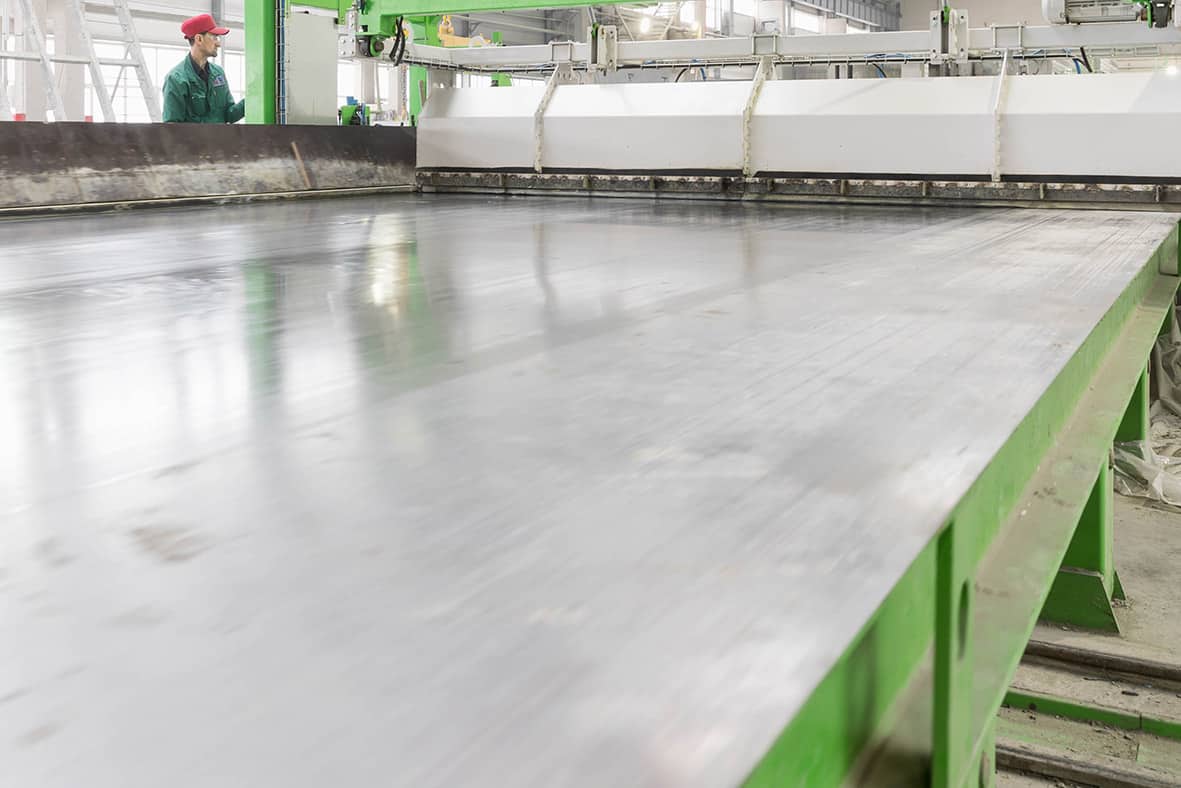

The Elematic table E9 features a unique smooth, completely flat and long-lasting surface made of 8 mm straight-rolled steel sheet and a rigid steel structure manufactured to tight tolerances. The structure of the table guarantees high-quality surfaces and the correct dimensions of slabs and panels.
The surface plate is protected against corrosion for transportation and storage.
OPERATION

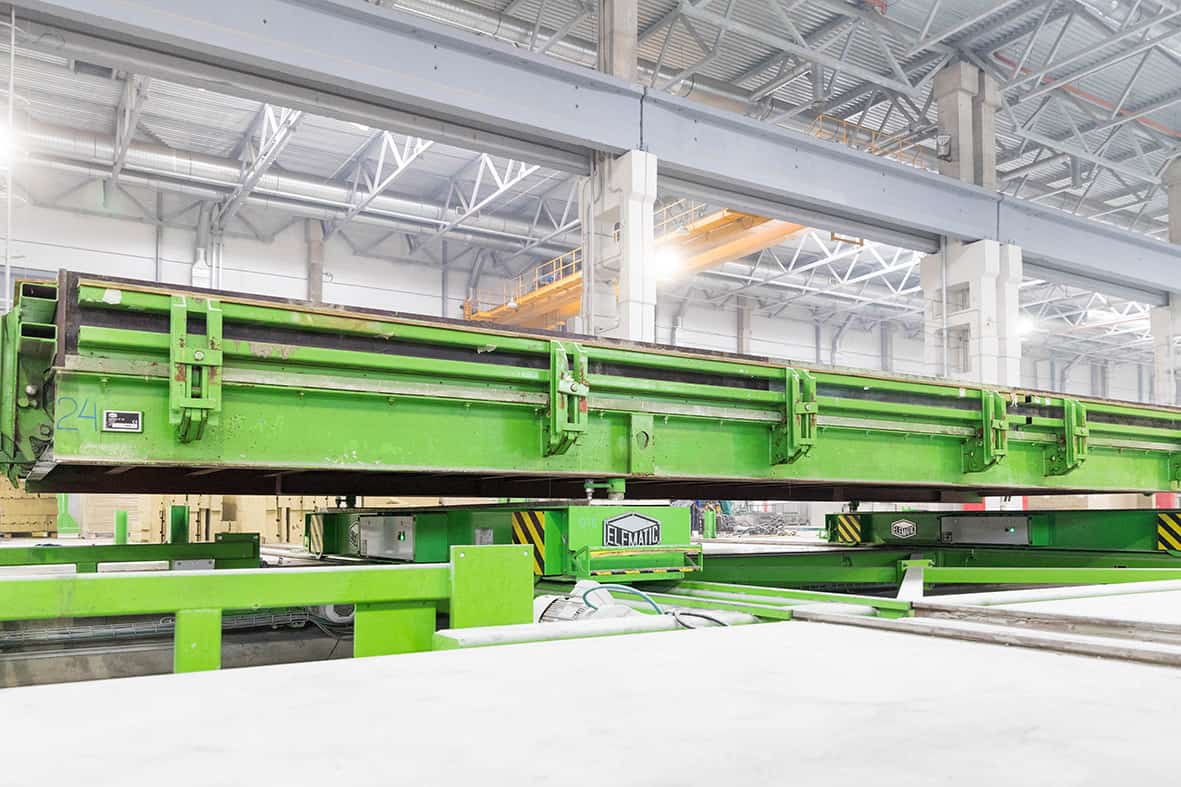

On the production line, table E9 is moved either longitudinally on a roller track using friction wheels or a central transfer wagon, or crosswise using cross transfer beams.
The table is equipped with buffers at both ends to prevent collisions.
BUILT-IN SAFETY
The Table E9 is delivered with comprehensive operator, maintenance and safety manuals in the required language.
Compatibility
Benefits
-
Flat, long-lasting surface
-
Manufactured to tight tolerances
-
Correct slab dimensions
