Preparer E9

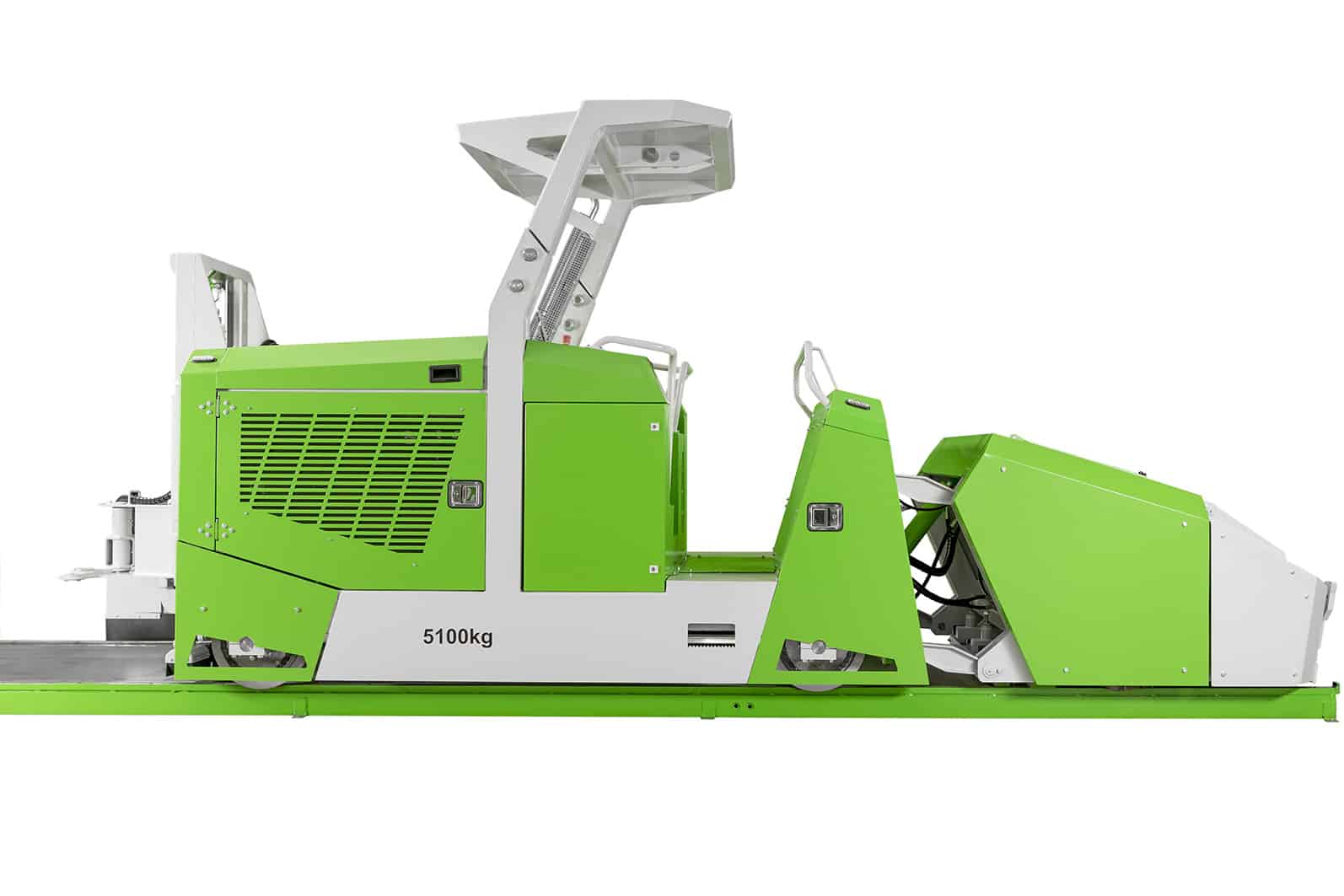

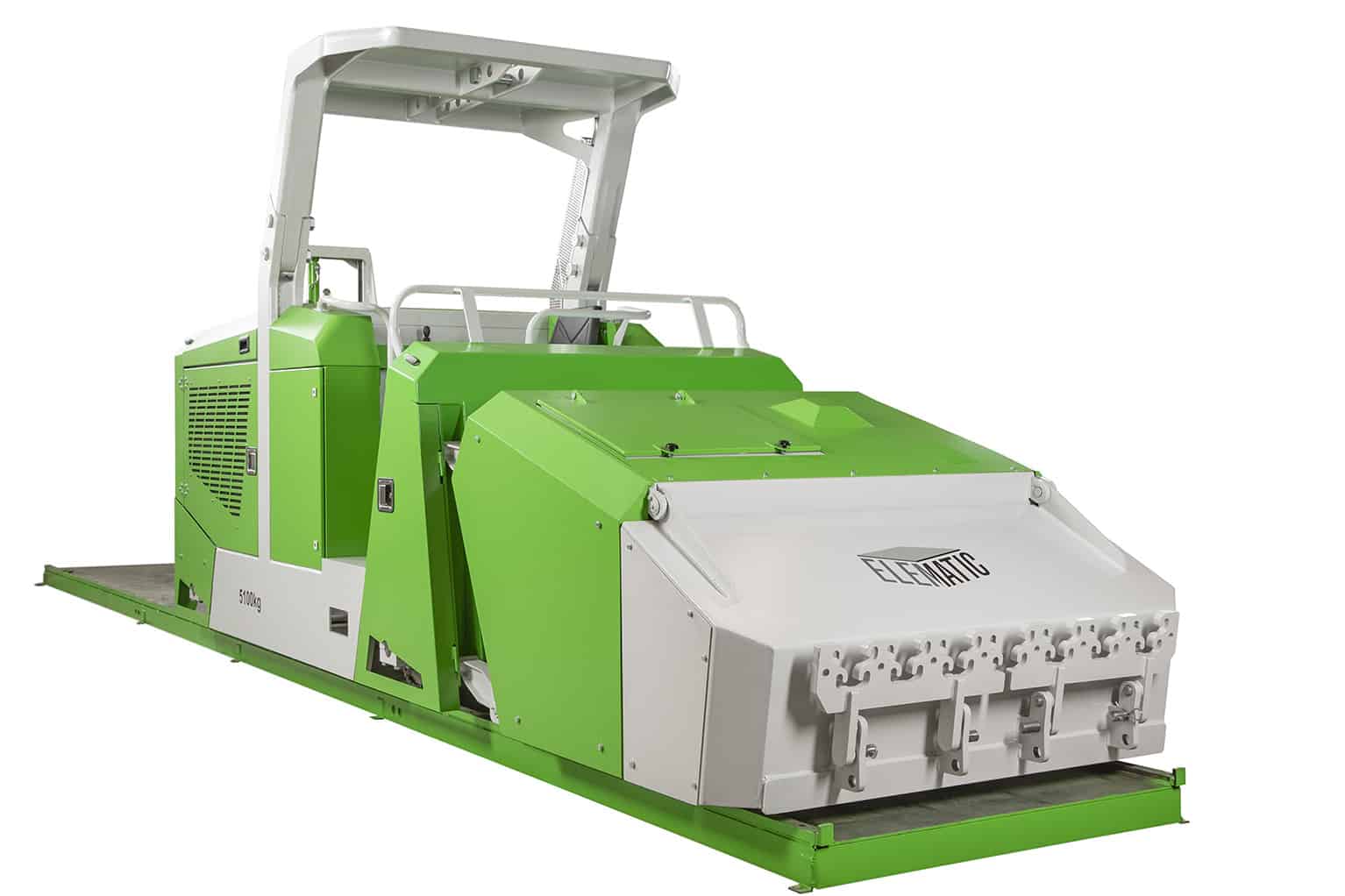

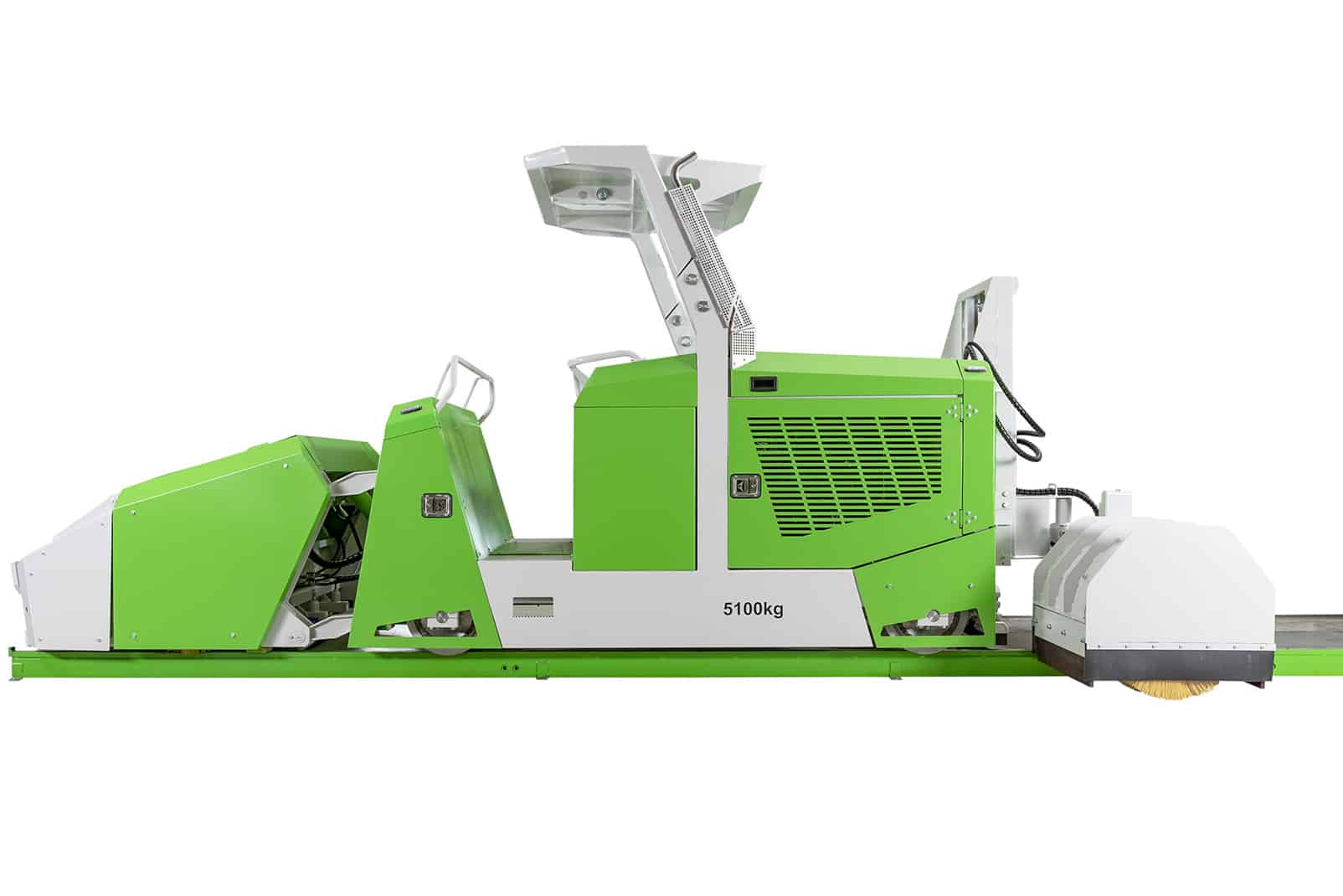

The Elematic Preparer E9 is designed to clean casting beds, pull prestressing strands and oil bed surfaces in precast concrete plants. The machine is well suited for use in hollow core, half slab and solid slab production.

Download a brochure

pdf (410 kb)

Preparer E9-1200p-lpg

Width 1600 mm
Height 2100-2550 mm
Length 5000 mm
Weight (empty) 5100 kg
Speed (free) 60 m/min
Speed (brushing/strand pulling) 30 m/min
Speed (oil spreading) 30 m/min
LPG powered

The Preparer E9 is a robust, heavy machine with features that not only help prepare beds for fast slab casting, but which also reduce dust emission, minimize oil and fuel consumption, and prolong the lifetime of the beds. The machine is lpg-powered.

OPERATION

Thanks to the robust structure and powerful 4-wheel drive engine, the machine pulls pre-stressing strands at a fast speed of 30 m/min. The Preparer can also pull several strands simultaneously, remove large concrete residues with ease and clean gutters between the beds.

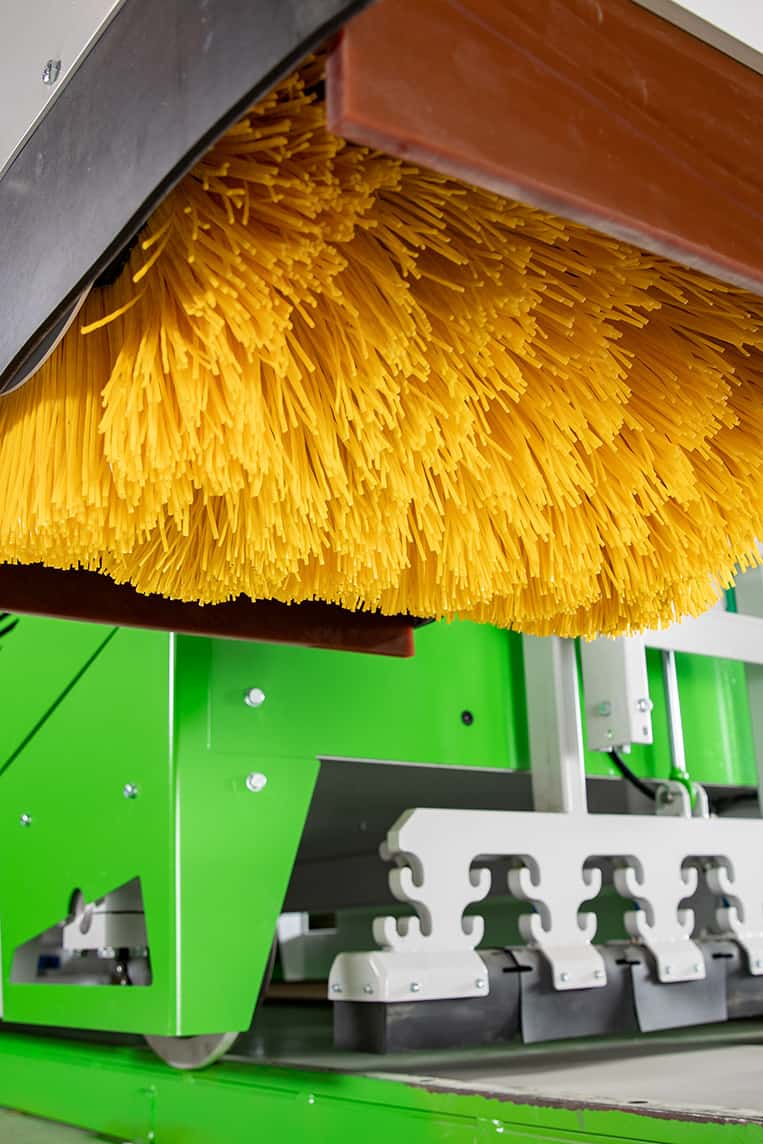

The massive weight and 4WD provide high traction for efficient cleaning. The large cleaning brush is made from long-lasting material and it cleans without wearing the bed. The dirt box can also be emptied fast to a sewage channel or dust bin.

The Preparer oils beds fast at a speed of 30 m per minute. It uses an optimized spray pattern to spread oil evenly, giving good protection to the bed surface. It keeps emissions to the environment at a low level because the spraying area is covered. The machine is equipped with a large, 60-liter oil tank.

In the diesel-powered variant, fuel consumption is kept low with ECU-controlled LPG (RPM).

BUILT-IN SAFETY

Like all Elematic machinery, safety features are built in. The Preparer E9 features a water-mist system for dust prevention, and the operator is well protected in the cabin, which has a roof.

The Preparer E9 meets EC Machine Directive requirements and comes with thorough and clear operator, maintenance and safety manuals in the required language.

COMPOSE

The Preparer E9 is manually operated and LPG powered. The brush movements are hydraulically operated. The machine has 4-wheel drive.

The machine is controlled from the cabin. The user interface includes electronic control levers to operate the actuators in the hydraulic system, and a display and push buttons to start the engine and monitor the speed and operation.

VARIANTS

Preparer E9-1200p-lpg                                          LPG-powered

OPTIONS

Dust reduction

A high-power vacuum system sucks air from inside the brush cover and prevents dust particles from returning to the air. This keeps dust levels, including silica, at low level around the machine.

Gutter brush

Aspirator and filter

Benefits

  • Fast bed preparation

  • Less silica dust

  • Excellent cleaning results
