Compaction station E9

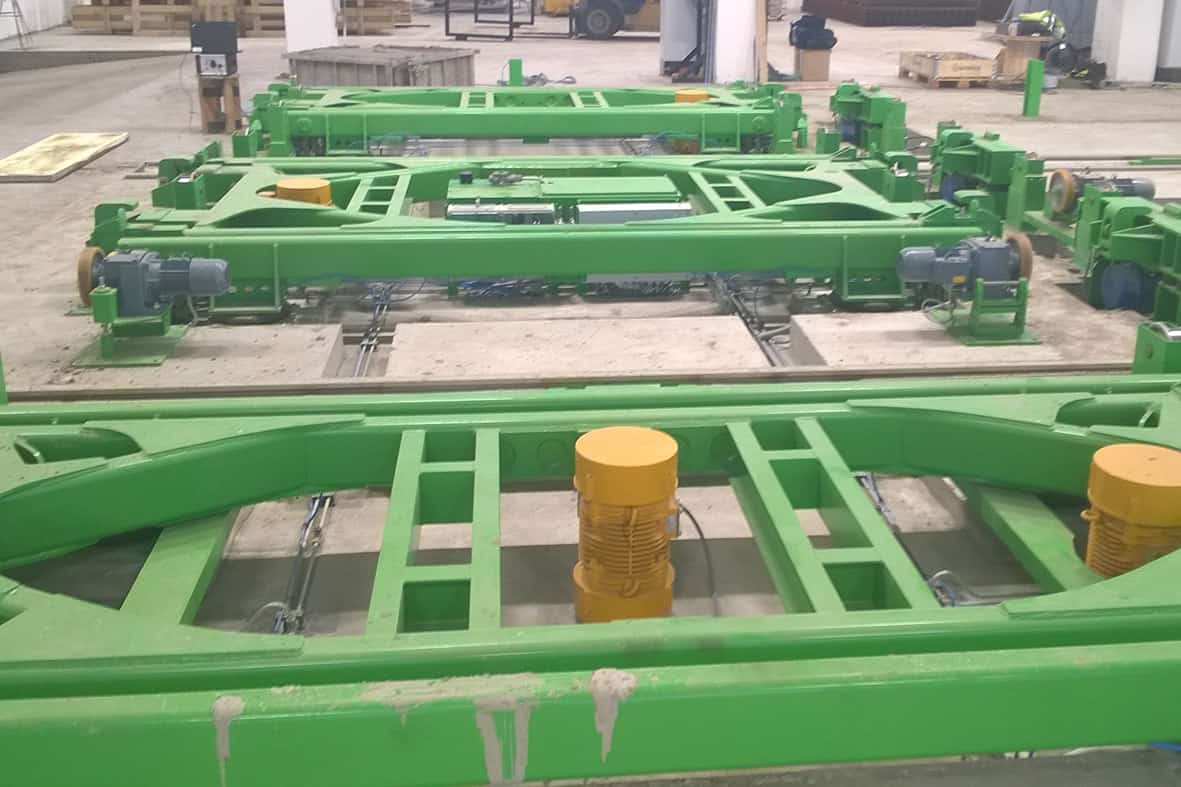

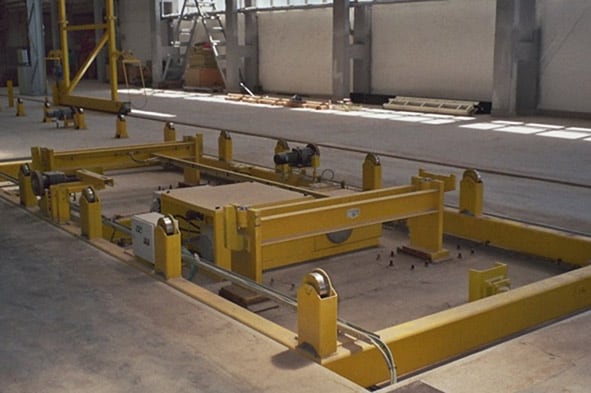

The Elematic compaction station E9 is designed for compacting of concrete in molds.

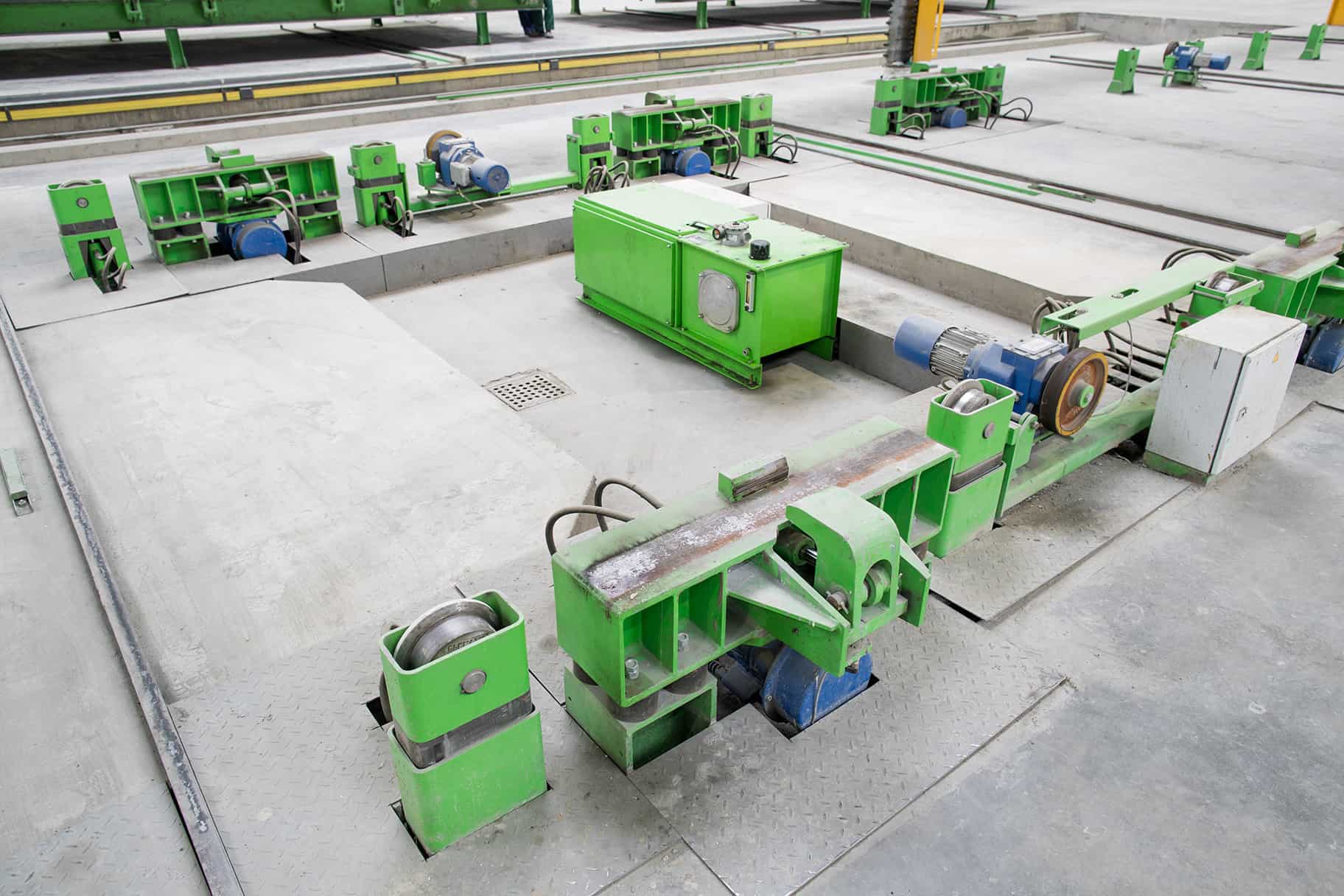

The Elematic compaction station E9 is equipped with hydraulically operated lifting and lowering roller brackets to place a mold onto separate compaction brackets.

The compaction station E9 is designed for molds without wheels.

The delivery contains compaction brackets, roller brackets, friction wheels, hydraulic pipework and hydraulic unit.

Compaction station E9-22c-e

Max. mass of element and mold 22 t
Compaction frequency, max 3600 1/min
Centrifugal force, max 20 kN
Mold size 3.5 x 8.0...4.2 x 9.0

Compaction station E9-30c-e

Max. mass of element and mold 30 t
Compaction frequency, max. 3600 1/min
Centrifugal force 20 kN / bracket
Mold size 3.5 x 10.0...4.2 x 12.5

Compaction station E9-22c-s

Max. mass of element and mold 22 t
Power of consumption (start up/const.) 22.5 / 3.6 kW
Mold size 3.5 x 8.0...4.2 x 9.0

Compaction station E9-30c-s

Max. mass of element and mold 30 t
Compaction frequency, max. 0...25 Hz
Power of consumption (start up/const.) 30 / 4.8 kW
Mold size 3.5 x 10.0 ...4.2 x 12.5

Compaction station E9-22c-h

Max. mass of element and mold 22 t
Compaction frequency 50 - 160 1/min
4 compaction cylinders 60 kN / cylinder
Molds 3.5 x 8.0...4.4 x 9.0

Compaction station E9-30c-h

Max. mass of element and mold 30 t
Compaction frequency 50 - 60 1/min
6 compaction cylinders 60 kN / cylinder
Molds 3.5 x 10.0...4.2 - 12.5

OPERATION

The functions of the compaction station E9 are controlled from the control enclosure available as option.

BUILT-IN SAFETY

The compaction station E9 meets all EC Machine Directive requirements and comes with thorough and clear operator, maintenance and safety manuals in the required language.

VARIANTS

Electric

Hydraulic

Shear compaction

OPTIONS

Control system
