Batching and mixing plant S5-20

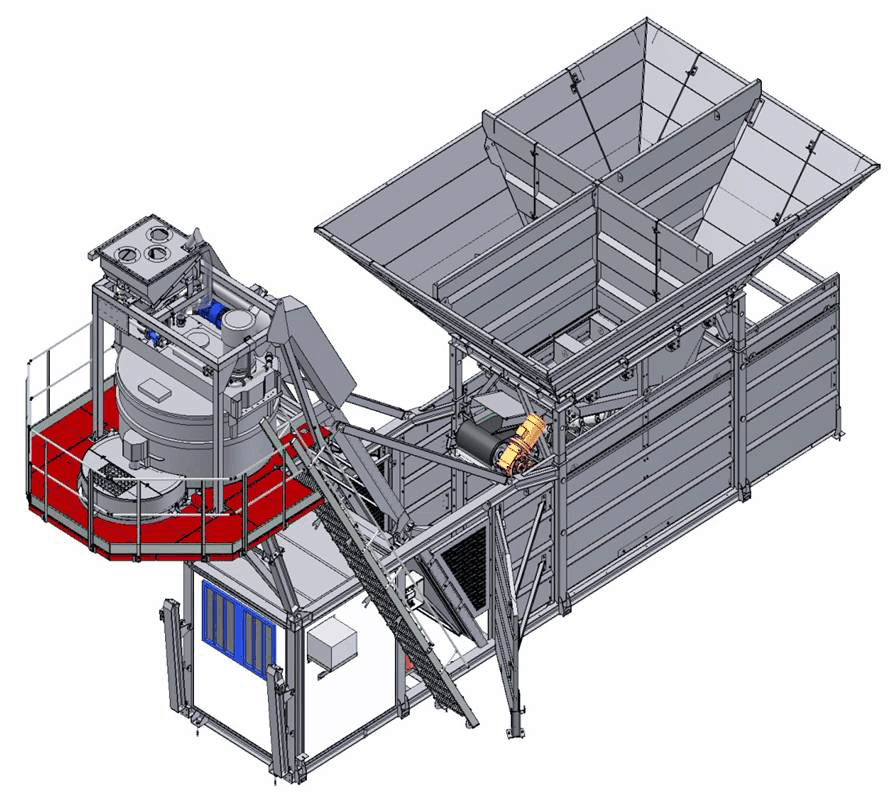

The Elematic Batching and Mixing plant S5 is a small, mobile and modular concrete mixing plant with a planetary mixer to produce up to 20 m3/h of high-quality concrete.

The Batching and Mixing plant S5-20 has a modular structure for easy erection, dismounting and transportation from site to site. Assembly and start-up of the plant is fast. The plant is designed as a main unit ready to be connected with other required components.

The S5-20 features an aggregates storage, the total capacity of which is 25 m3 with four aggregates, and a planetary mixer with a capacity of 1.0 m3. The skip weigh, the cement weigh and the water weigh are included. Cement silos are excluded.



The operator cabin, the electronic control board and the operation control system are located in the principal unit of the plant.

SAFETY

The Batching and Mixing plant S5-20 meets all EC Machine Directive requirements and comes with clear and thorough operator, maintenance and safety manuals in the required language.
