Site lifting beam P7

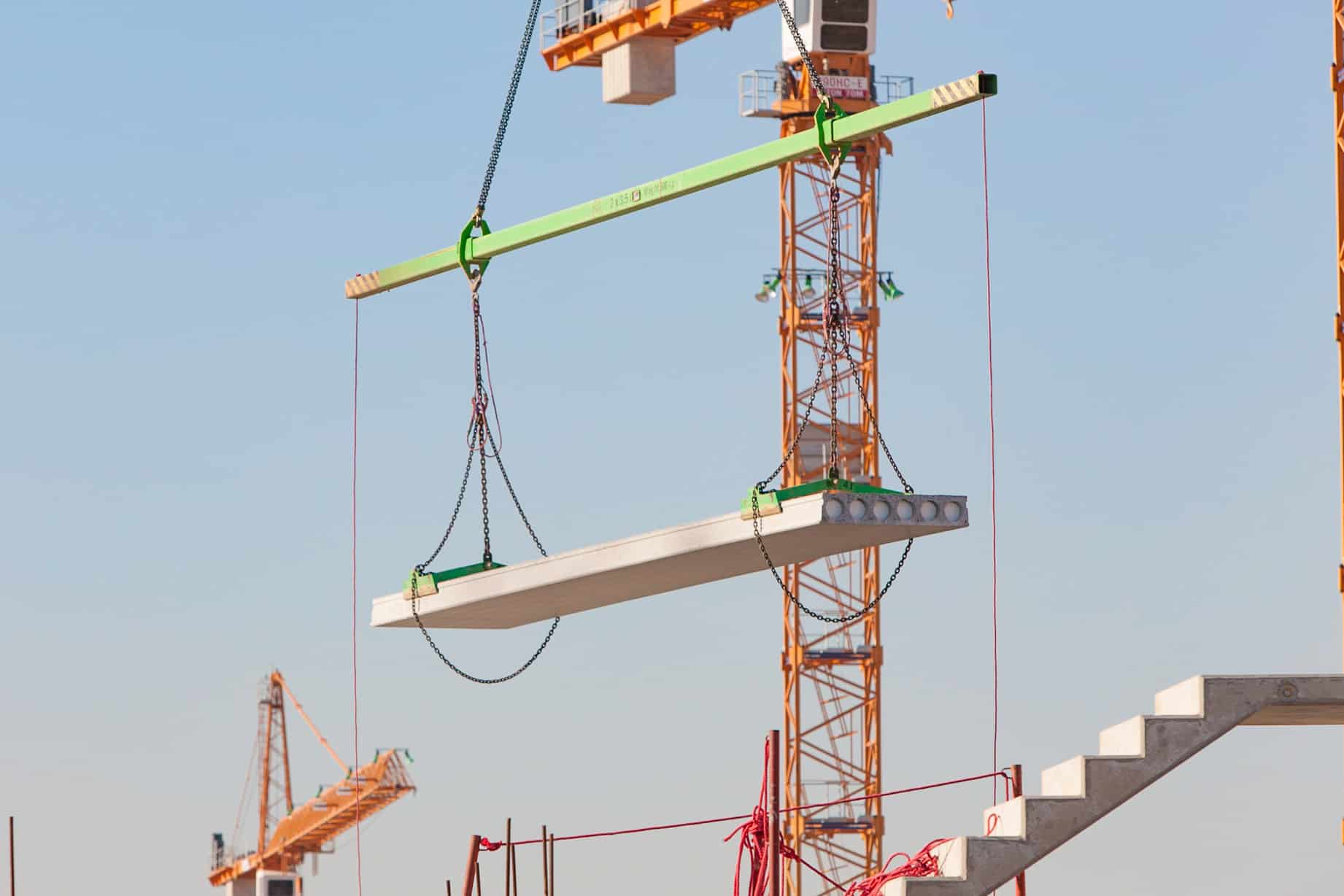

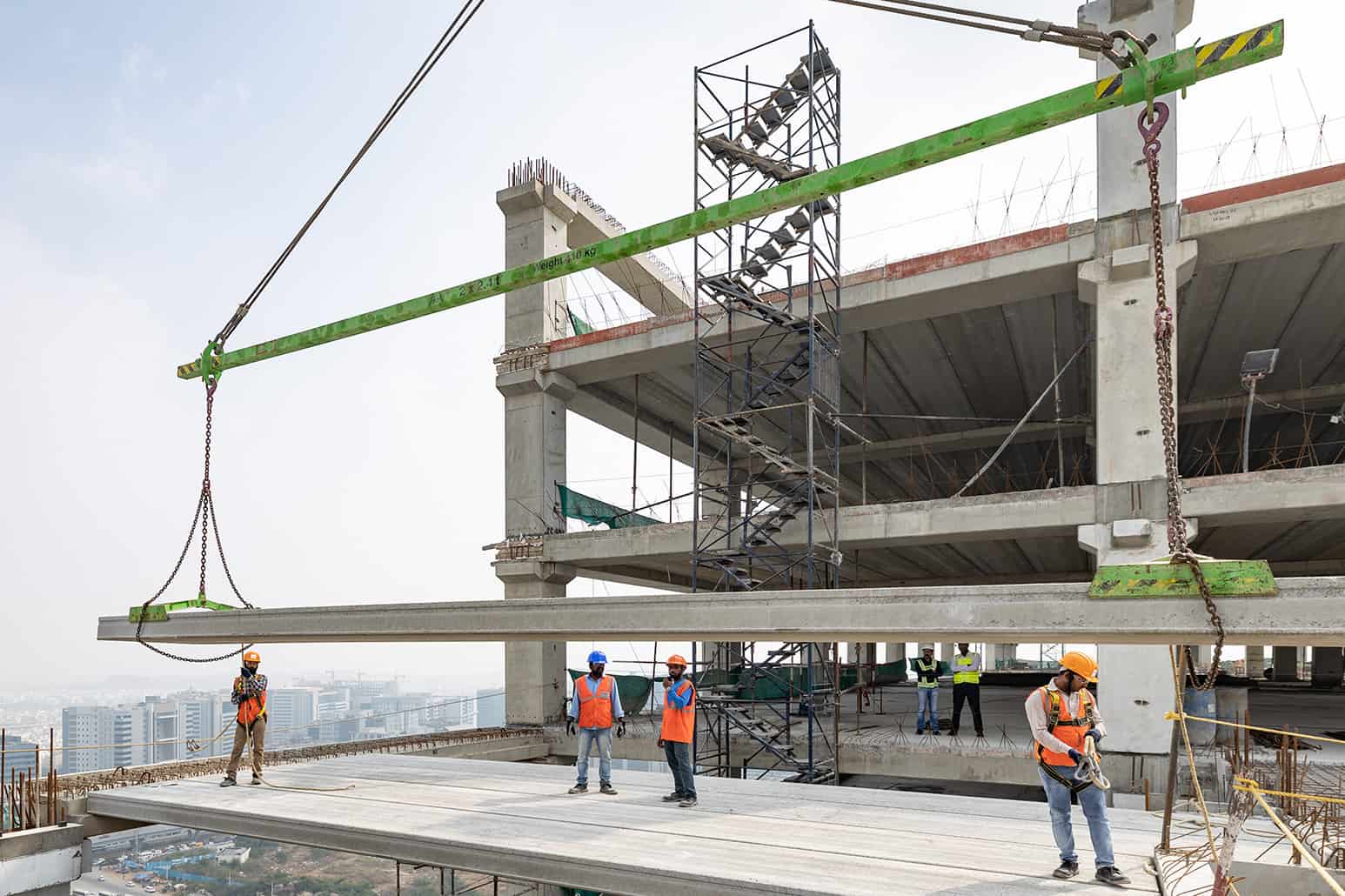

The Elematic Site Lifting Beam P7 is used to install hollow core slabs on construction sites and it is designed to be lifted by a crane with one hook. It comes in several different variants.

Site lifting beam P7

Several sizes/capacities
Beam includes 2-4 lifting clamps Equipped with safety chains

The Site Lifting Beam includes two or four lifting clamps with safety chains, depending on the exact model. The distance between lifting points can be adjusted in steps in all models. The clamps are moved manually. Variants with a shorter span and smaller capacity are easier to use than bigger ones when installing shorter slabs.

VARIANTS

SLAB WEIGHT SITE LIFTING BEAM CLAMPS
< 5 t P7-5-7

P7-5-9

2

2

< 8 t P7-8-15 4
< 10 t P7-10-18 4
< 12 t P7-12-15 4
< 14 t P7-14-17 4
