Lifting clamps S5

The Elematic lifting clamps S5-4 are designed to be used in pairs to lift hollow core slabs from the bed or in construction sites.

Clamp S5-4

Capacity 4 t / pc
Weight 79 kg / pc

OPERATION

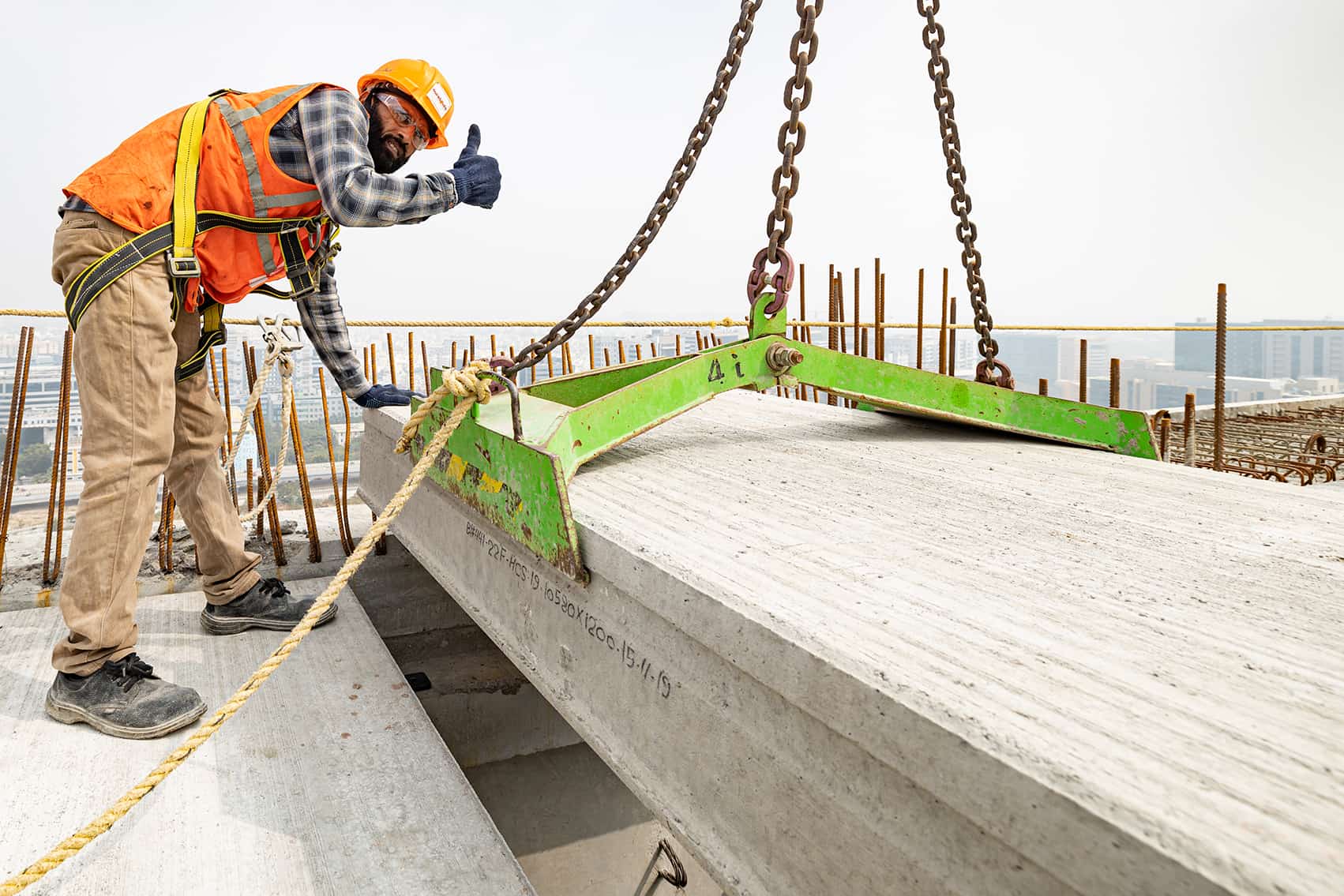

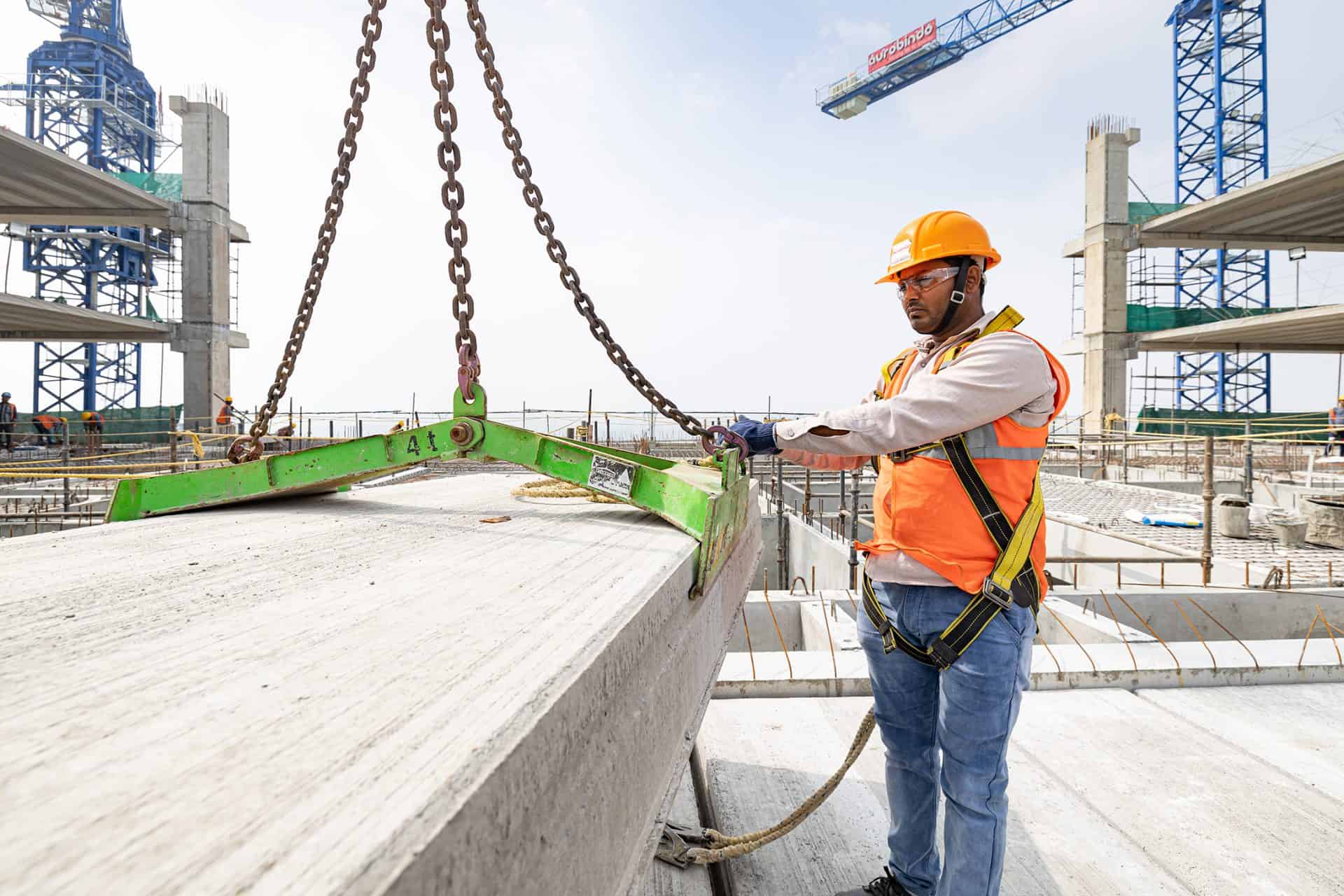

The lifting clamps S5-4 can be attached to crane hook or lifting beam if available. Lifting is done by attaching the clamps to the side grooves on the slab.
The clamp is fastened and unfastened manually. The clamps are normally used in pairs but can also be used individually.

BUILT-IN SAFETY

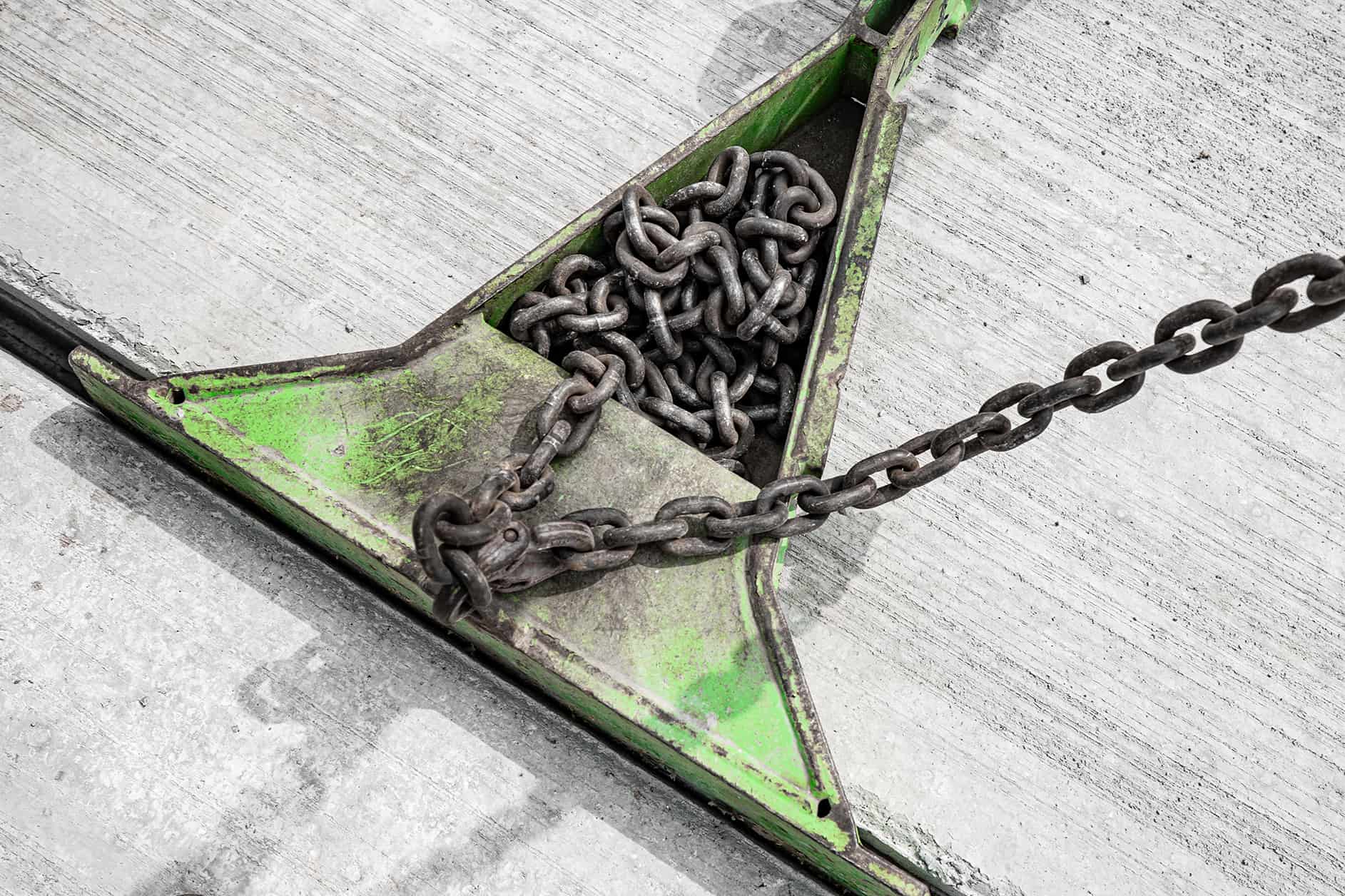

The lifting security is ensured by safety chains for suspending the hollow core slab in case it is damaged or comes off from the clamps while lifting.
The Lifting clamps S5 come with thorough and clear operator, maintenance and safety manuals in the required language.
