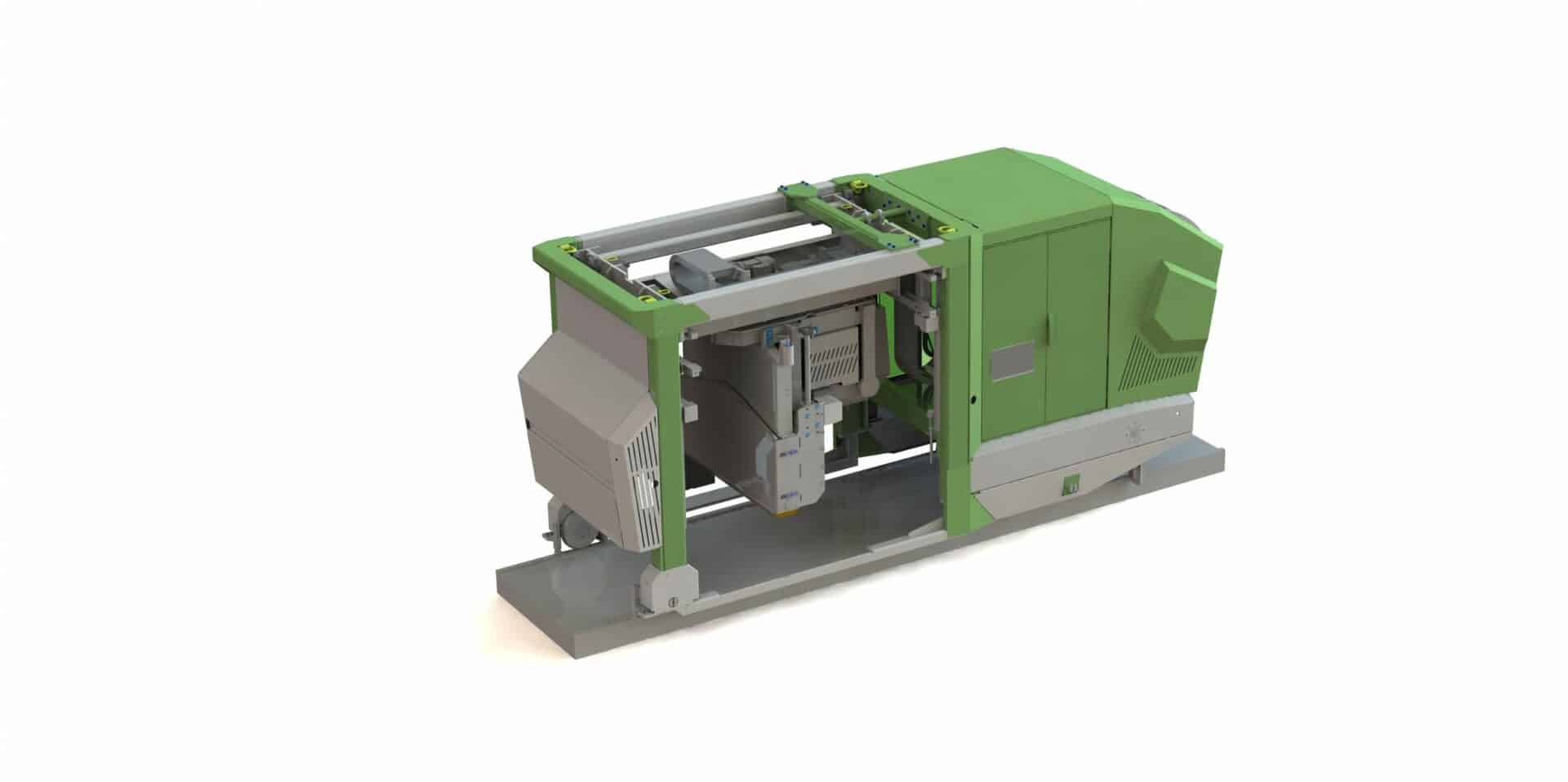

The Elematic Saw P7 is designed for semi-automatic cutting of prestressed precast slabs, such as hollow core slabs, massive slabs, piles and T-beams, of up to 500 mm. The slabs can be cut at any angle: crosswise, longitudinally and at any angle in between.
Download a brochure
Saw P7-500 2022
|Length (with cable and water hose drum)||5100 mm|
|Width||1650 mm (65")|
|Weight (without drums)||6700 kg (14470 lb)|
|Cutting blade diameter||800-1350 mm (32"-54")|
|Saw driving speed, stepless||0-0.67 m/s (0-2.2 ft/s)|
|Water flow and pressure||min. 40 l/min @ 2 bar|
|Width||max. 1250 mm (50")|
|Height||max. 500 mm (19.7")|
The Elematic Saw P7 features an automatic cutting cycle to cut 1200 mm wide concrete slabs with a maximum thickness of 500 mm. The machine can also be automated to cut any precast units cast on a bed.
The Saw P7 is a good solution for a precast factory where automated cross, longitudinal, and diagonal cutting are needed.
New features in 2022 model:
- Telescopic blade cover for added safety (blocking shooting diamond cutting pieces and noise)
- Dust removal system available as an option (HEPA 13)
- New blade movement and drive mechanisms for easier maintenance
- Simpler and more reliable mechanisms
- Reduced height: can fit in lower production halls
- Updated control system with an intuitive user interface and improved cutting control and programs
The Saw P7 is operated with a push button, a joystick and a visual touch screen that is also suitable for outdoor operation. The machine is equipped with stepless control of the machine forward/reverse speeds.
The Saw P7 offers 4 product-specific cutting programs to ensure the consistency of the cut slabs. The saw is positioned quickly using a laser pointer and the blade is inverter-controlled so no belt changes are needed when the blades are changed.
Integrated water sprays clean the cockpit shield and the slab surface after cutting, which ensures excellent bonding of the topping at the construction site.
The cutting cycle is performed automatically according to the selected cutting program. After cutting, the blade is quickly stopped with an electric brake to ensure safety. The slab can be cut at any angle: crosswise, longitudinally and at any angle in between: with crosswise (90°), diagonal (0°-180°) and longitudinal (0° or 180°) cuts.
The Saw P7 is a low maintenance machine because there are no hydraulics. The control system gives clear alerts and displays data logs and status, so troubleshooting is easy. Remote troubleshooting via a Wi-Fi connection is also available as an option.
As with all Elematic machinery, safety features are built in. The Saw P7 features a safe cockpit with a transparent shield and a camera system for a real-time view of the area in front of the saw. It has derail protection to reduce the risk of the machine falling over and it is equipped with a fast automatic blade stop after cutting. Low noise blades are available as an option.
The machine meets all EC Machine Directive requirements. It is delivered with comprehensive operator, maintenance and safety manuals in the required language.
The Saw P7 runs on rails on a casting bed and it needs one person to operate it.
REQUIRED ADDITIONAL ITEMS
Power feed for saw
Saw water feed
Diamond tipped blade
Retaining clamp for T-beams
Cabin for saw
